PinzOK Epsilon
electronic for the automation

Control panel
The cobntrol panel is iontegrated and compactunit for the automation of machine tools. The panel has been planned to pick in just one unit compact and easy to substitute the electronic of control and the sorting of connections which usually are distribuited in more than one unit.
The automation
The panel is able to pilote directly as an asynchronous and monophasic motor, 0'75 KW of power and it is able to manage up to 16 digital entrances (sensors or control devices) and up to 18 digital exits (actuators or signaling devices)

PinzOK Epsilon,
perfect for...

Control panel
The structure of the logic of the machine is incorporated in the software in the pinzok Epsilon panel and it will have to be realized on specific directions of the builder of the machine, basing on the features of the machine itself. The inaccessibility from others, to the programming of the panel, makes it impossible the copy of the machine from eventual competitors. The low price cheapness and the simplicity of the use of the instrumentation necessary to modify the planning, once we haver the documentation, they make the use possible also from the final user, the structure of the software of the machine has been realized to minimize the time for the personalization of the machine, so to reduce the costs.

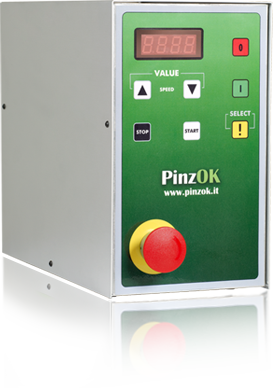

the interface through the operator is composed by:
• Keyboard with 7 buttons
• Display with 4 numbers in 7 segments
• Emergency button
The interface of the machine is composed by:
• Feeding cable general 220V 50HZ
• Motor cable
• 3 cables "D" type, 15 male contacts for the entrnacers
• 2 cables "D" types 15 female contacts, for the exits
• 1 cable tipe "D" 9 female contacts for a auxiliar feeding, in exit, of 24 Vac
• 5 fuses for the protection of the panel itself of the motors and of the exits.

Download

Download the cards PinzOK Epsilon
Cards PinzOK Epsilon - click on the iomages below to download
