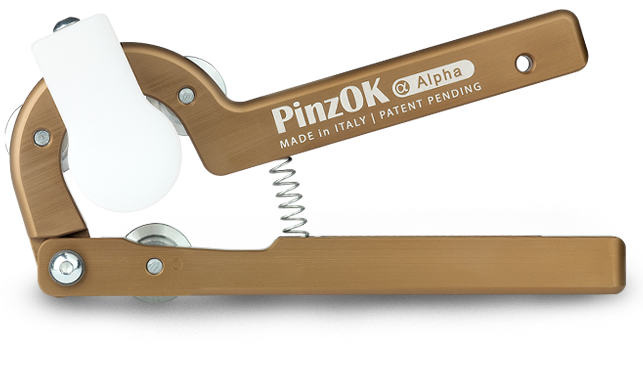

Packaging machine PinzOK Alpha for capsules or screwtops

PinzOK Alpha is a manual device to easily pack the inferior part of the capsules or screwtops, preventing the accidantal opening for the warranty of the producer and of the costumer. The capsule or metallic stopper generally in alluminium, is pre-threaded and presents a lower circle arrannged to break itself.
Functioning
Using PinzOK the lower circle(crown) of the capsule is put to adhere to the neck of the bottle so that, at the moment of the opening, unscrewing the stopper, the crown, breaks and remains caged in the neck of the bottle itself on the evedence of the happening opening and as a warranty that during the process from the producer to the customer it hasn't been any alteration.
Materials
PinzOK is handly becaouse it is built essentially in lighten alluminium. The special tratment of the handles guarantes a long lasting. The beat in nylon doesn't damage the stopper. The parts which are subjected to usury, rolls and pivots, are in steel.

Packaging machine

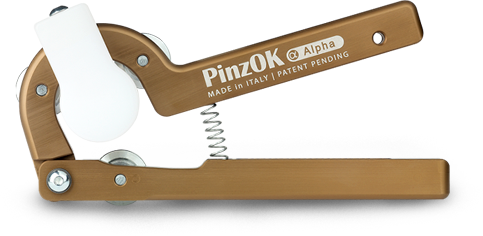

PinzOK Alpha
perfect for

PinzOK has been conceived and realized after a precise request came from the market which asked a versatile and cheap object, professional but simple to use, strong and light at the same time, to cover the exigencies of the small producers in the oil sector. Farm holidays,farm firms, oil mills.
Screwtop
This request is due also to the very diffused use of the screwtop, which is substituting progressevely other kinds of locks, for its praticalness and its capacity of limitate at the maximum the pèassage of the oxigenum.
During the planning we have considered the professioanl using, curing the ergonomics and the wight without compromising the simplcity of the use and its toughness.

PinzOK Alpha , thanks to its features has found an immediate confirmation in the m,arket of the oil sector and it's causing interest in all the fields where the capsule ids utilized as enology, distillery, infusions, the medical sector, for example for the little sample bottles or glass tubes pipentes and for containers with particulary shapes which are not convenient to use also in the big industry.

Use of PinzOK Alpha

Download the guide

Download the guide in pdf which you will find inside the packaging of PinzOK
DOWNLOAD PDF

Download the image

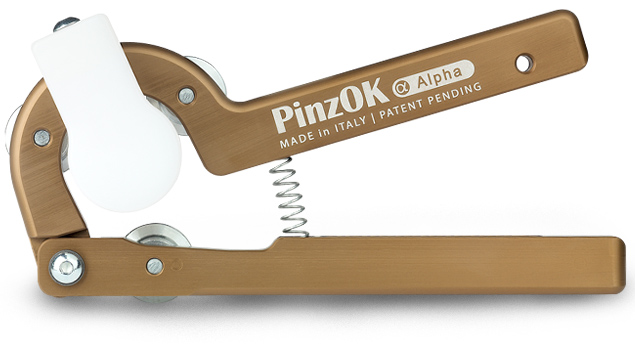

PinzOK - sigillatrice tappi prefilettati

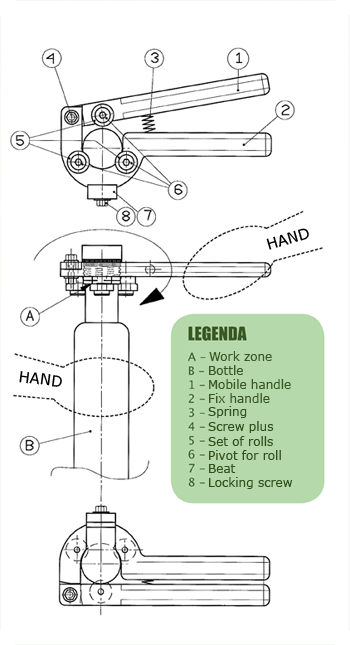

Instructions

The only operation to do before you can use the PinzOK is to put in measure the height of the beat in nylon “7”.
With the key that you find in the package you have to loosen the lock off screw ”8” and lean the PinzOK on the top making that the top are at the right height in the work zone “a” then lock the screw again and the packaing machine is ready.
This adjustment can be necessary also with the same diameter in case we use the tops with or without (dropsaving) which have different heights.
You don't need any other adjustments/regolations.
After you have screwed in the stoppers you want to close “B” with one hand you keep the bottle in vertical position, while,with the other hand you put PinzOK on the “A” stopper caring that you lean well the superior beat in nylon “7” against the stopper itself. Therefore squeezing not too hard both the handles of PinzOk “1-2”, we turn it of 120° on the vertical axle of the stopper, and the bottle.
During this phase the 3 rolls draw near eachothers to the pre-cut end/extremity of the stopper pusching it in contrast with the recess located in the inferior part of the threaded part of the bottle drawing it to copy all the circunference, now the stopper is locked and, without leaning the PinzOK we can takeanother bottle and repeat the action: to substitute the three standard with one of the kit request to pass from a stopper measure to another is simple and fast, you just need to use the key you have and unscrew the three keeping pivots of the rools “6”, substitute them with the ones of the necessary measure “5” so screw the pivots with the key.

In case you have some douts don't esitate to contact us in the special section contact us.




Manuale Utilizzo PinzOK

Download

Download the cards of PinzOk Alpha
Download PinzOk Alpha click on the images below to download.
